Raidho TD1.2
AED79,050.00
VAT Included
|
Free delivery in UAE

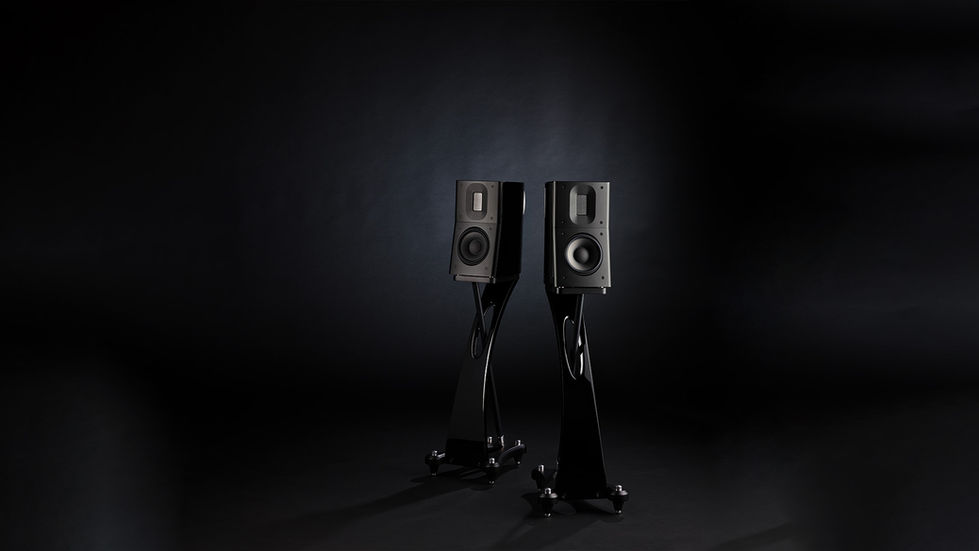

Raidho TD1.2 Stand Mount Loudspeaker
If you were only to judge this speaker by its size, you would be fooled. The TD1.2 has a personality that thinks it is twice the size. This is probably one of the best stand-mount loudspeakers, currently on the market. Regardless of price. Just the amount of awards this loudspeaker has received is simply mindboggling.
Outrageous performance in its price class
If you want the same performance as the TD1.2 in a floorstanding loudspeaker you would have to pay a lot more. Because the same money would have to go into a bigger enclosure, more drivers and a more complex crossover. This means that the performance from the TD1.2 is actually outrages in this price class.
If your room is below 30 m2, you will get to High End heaven with the TD1.2. Musical immediacy, resolution and dynamics like never before from a small speaker. The TD1.2 is the one to beat with staggering performance wrapped in a very elegant and stylish look.
Optional stand in silver and black.
Color
Quantity
Raidho Series TD Drive Unit
This is truly aunique and revolutionary drive unit! 100% developed and built in-house by Raidho. The goals was simple: nocoloration and outstanding dynamic capabilities.
The motor comprisesof a very strong magnet (N52Neodymium) with an unseen even magnet field, coupledwith an underhungtitanium voice coil. This arrangementgives the drive unitthe most powerful underhung magnetsystem in the world. The benetfit from an underhung voiciecoil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.
To enhance the strength of the magnetic motor even further, we designed a new titanium voice coil using square shaped wire that eleminiates air in the voice coil windings. Leaving no possibility for air gaps to interfere with the magnetic field. The complete magnet system, as well as the basket itself is shaped like a turbine which eliminate any sound reflections, which would otherwisesmear the original sound. The solid coppering over the inner pole piece very effectively minimizes inductance and linearizes impedance. The suspension parts are as soft as possible to insure as little mechanic restraints to movement of the diaphragm.
Finally, a drive unit that can truly keep up with the Raidho ribbon tweeter and make it all sound as one.
The motor comprisesof a very strong magnet (N52Neodymium) with an unseen even magnet field, coupledwith an underhungtitanium voice coil. This arrangementgives the drive unitthe most powerful underhung magnetsystem in the world. The benetfit from an underhung voiciecoil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.
To enhance the strength of the magnetic motor even further, we designed a new titanium voice coil using square shaped wire that eleminiates air in the voice coil windings. Leaving no possibility for air gaps to interfere with the magnetic field. The complete magnet system, as well as the basket itself is shaped like a turbine which eliminate any sound reflections, which would otherwisesmear the original sound. The solid coppering over the inner pole piece very effectively minimizes inductance and linearizes impedance. The suspension parts are as soft as possible to insure as little mechanic restraints to movement of the diaphragm.
Finally, a drive unit that can truly keep up with the Raidho ribbon tweeter and make it all sound as one.
The Legendary Raidho Ribbon Tweeter
Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a planar Magnetic Tweeter due to the tracks in the foil.
The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).
The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.
The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).
The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.
Technical Information
Topology
2 way
Bass Loading
Bass reflex Port in rear, Impulse optimized
- Conform
Drivers
1 x Raidho TD Ribbon Tweeter
1 x 6,5” Raidho Tantalum
Diamond midbass
Crossover Point
2.4 Khz stepped slope
Frequency Range
45Hz - 50 kHz +/-3 dB
Sensitivity
87dB 2,83 V/m
Nominal Impedance
6 ohm
Power Requirement
25 -125 Watts
Finish
Piano Black, Walnut burl veneer or any colour
to order
Dimensions WxHxD, mm
200x360 x400
Weight, kg
13
- Conform
1 x Raidho TD Ribbon Tweeter
1 x 6,5” Raidho Tantalum
Diamond midbass
to order
