AGD Vivace MKII

Price

AED62,500.00

VAT Included

|

Free delivery in UAE

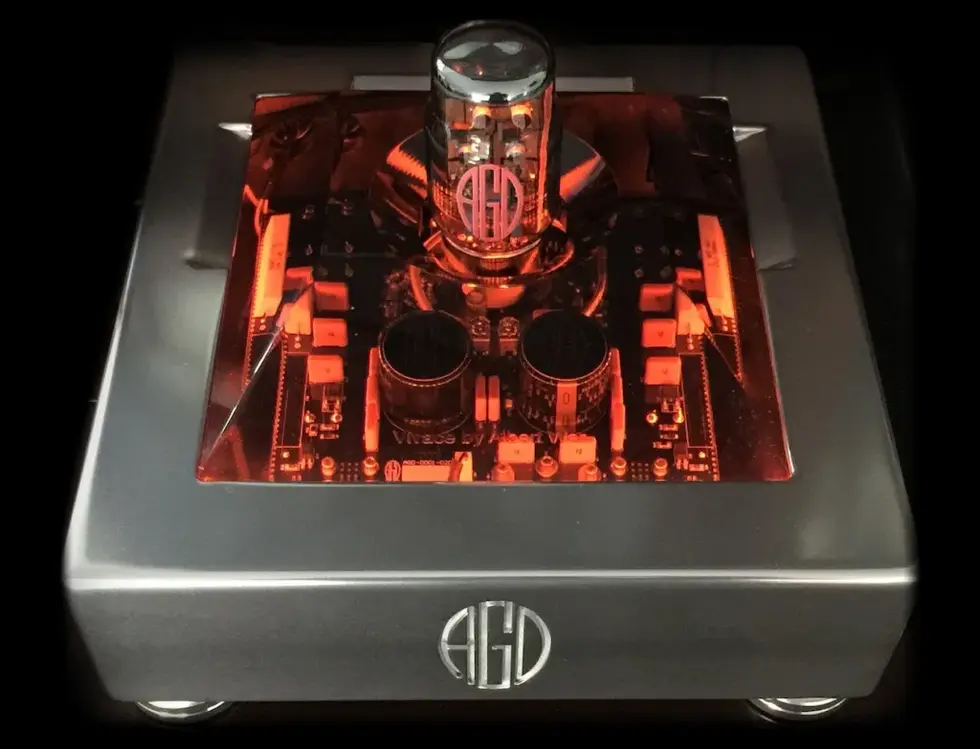

The AGD Vivace MKii Monoblock, is the most advanced Hi-End Power Amplifier in the market. First to use the unique GaNTube™ technology with Gallium Nitride Power-Stage integrated in a Vacuum Tube.



The Gallium nitride components are the key to the reference level performance of the AGD Vivace Monoblocks.

To achieve the highest-performance in audio reproduction, switching topologies must achieve nearly ideal switching waveforms, completely oscillation-free, to minimize distortion but most importantly, to preserve the harmonic content present in the original input signal and avoid the superimposition of any additional artifacts that alter the overall spectrum and the spatiality of the music reproduction.



The Gallium Nitride power MOSFETS used in the GaNTubeTM power stage, simplifies this challenge through its ability to efficiently switch at much higher slew rates than any silicon based power MOSFET, with almost perfect (book-like) behavior and oscillation free switching.

Finish

Quantity

Specifications

PARAMETERS GaNTubeKT88 MKII
Nominal Output Power at 0.01% THD+N, 20Hz÷20KHz, 8Ω 125W
THD+N 10W/1KHz <0.005%
Maximum Output Power at 0.1% THD+N, 1KHz, , 4Ω 250W
Bandwidth ±3dB 5Hz÷100KHz
Efficiency% >94%
Output Noise (A-weighted) ≤ 45μV
PWM Frequency 800KHz
Dynamic Range 120dB
Dimension 11"×11’x5" (279x279x127mm)
Weight 22lbs (10kg)
Input Voltage 110-240V (user selectable)
