AGD TEMPO di GaN

Price

AED22,000.00

VAT Included

|

Free delivery in UAE

The AGD “TEMPO” Stereo Amplifier is the new addition to our state-of-the-art Hi-End Power Amplifiers family. TEMPO is our first compact Stereo Amplifier utilizing the same unique technology of Gallium Nitride Power-Stage design already in use with all its Hi-End AGD siblings.


The AGD “TEMPO” is rated 200+200W 4Ohm (100W+100W 8Ohm).

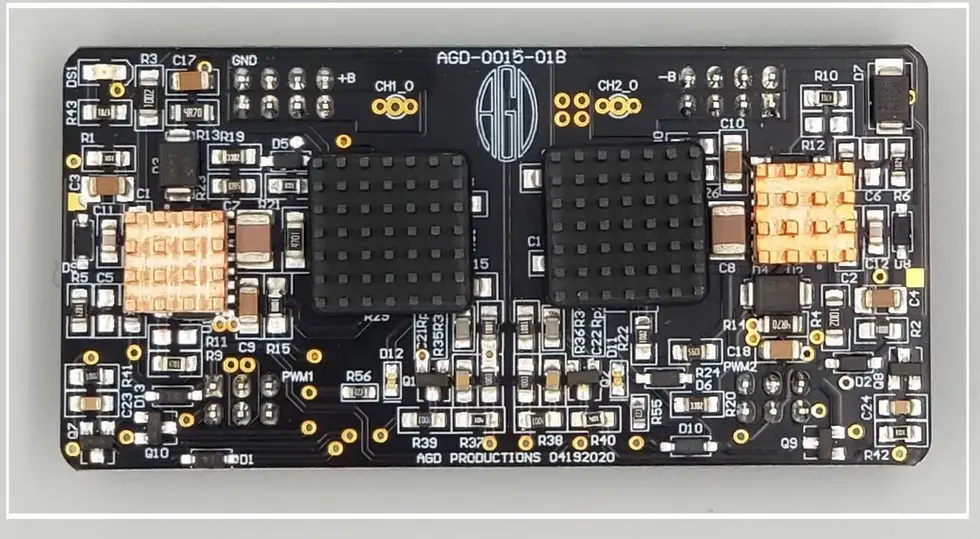

To achieve these performances in such compact CNC machined cabinet, we have designed a new GaN- based output power stage with a new mother board that contains the low noise power supply and all the analog buffer stages, small enough to enable these outstanding minimalistic footprint.


As for all AGD amps, the GaN-based power stage module utilized in the AGD TEMPO is fully upgradable to next generation modules using future generation of GaN devices with improved technology so to maintain the full value of the product in time.

Finish

Quantity

Specifications

Nominal Output, 20Hz÷20KHz, 4Ω 200+200W
THD+N 10W/1KHz <0.01%
Maximum Output Power at 0.1% THD+N, 1KHz, 8Ω 100+100W
Audio Bandwidth ±0.5dB 20Hz-20KHz
Bandwidth ±3dB 5Hz-80KHz
Input Impedance 40kOhm (600Ohm upon request)
Efficiency% >94%
Bridge Mode Output Power, 4Ω 400W
PowerGaN PWM Frequency ~800kHz
Dimensions 11×3.75×7.1 inches (280x95x180mm)
Weight 10lbs (5kg)
Input Voltage 110-240V (Auto-Switch)
