IQ-I

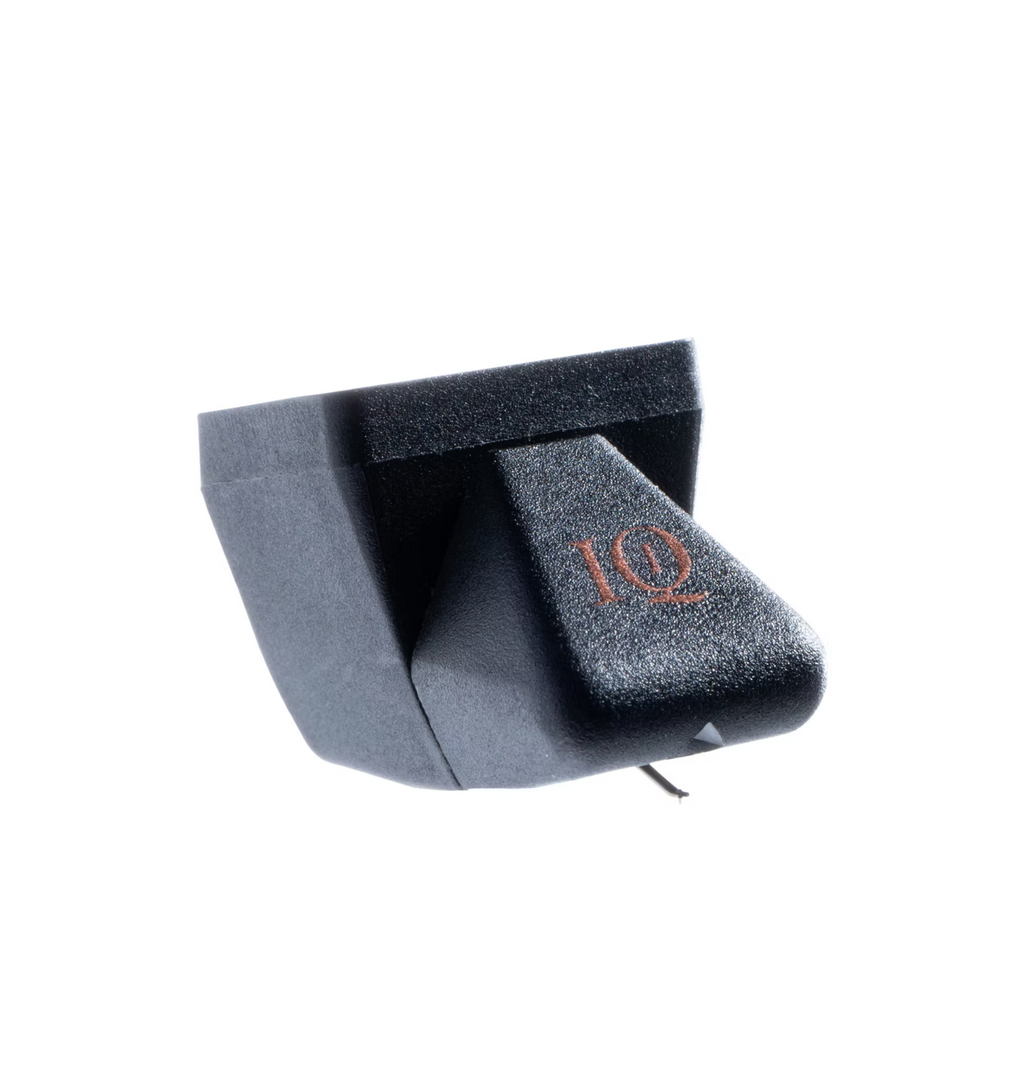

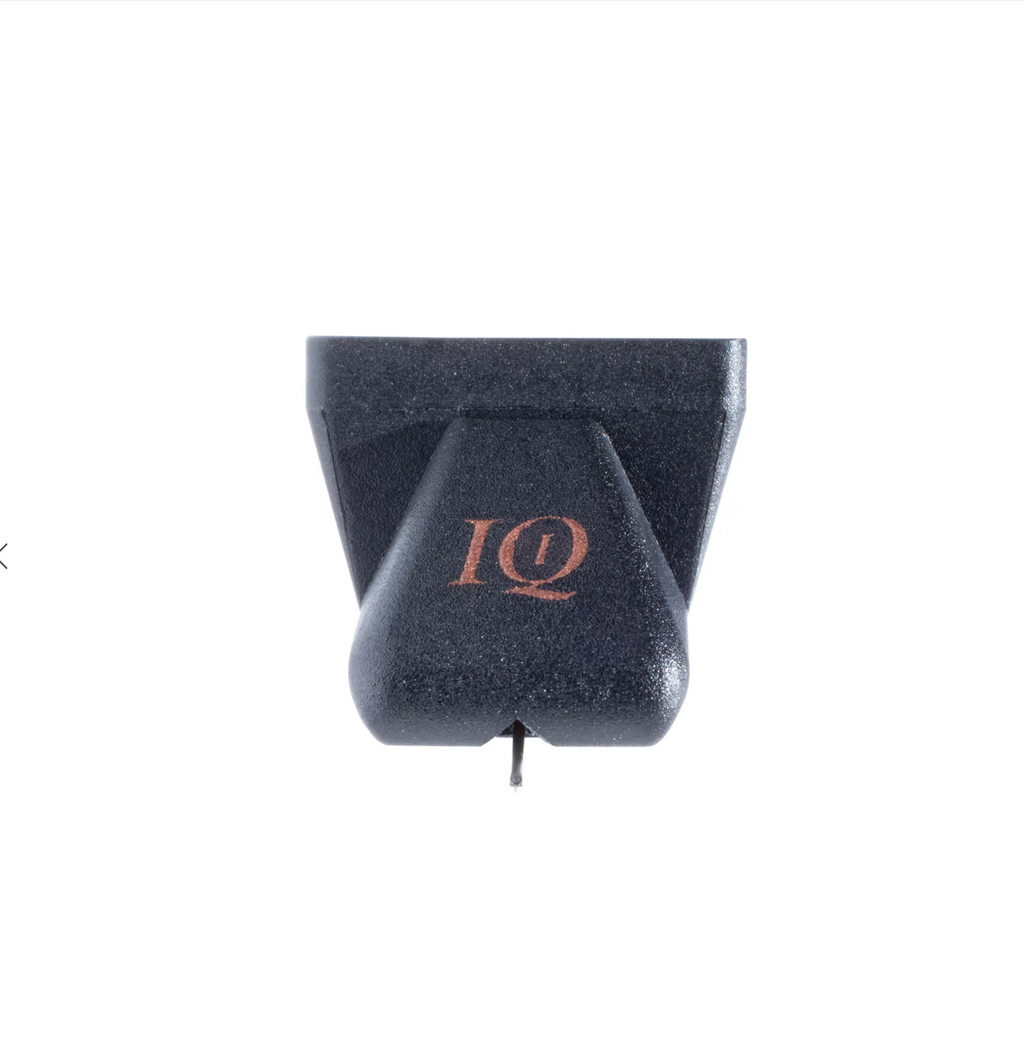

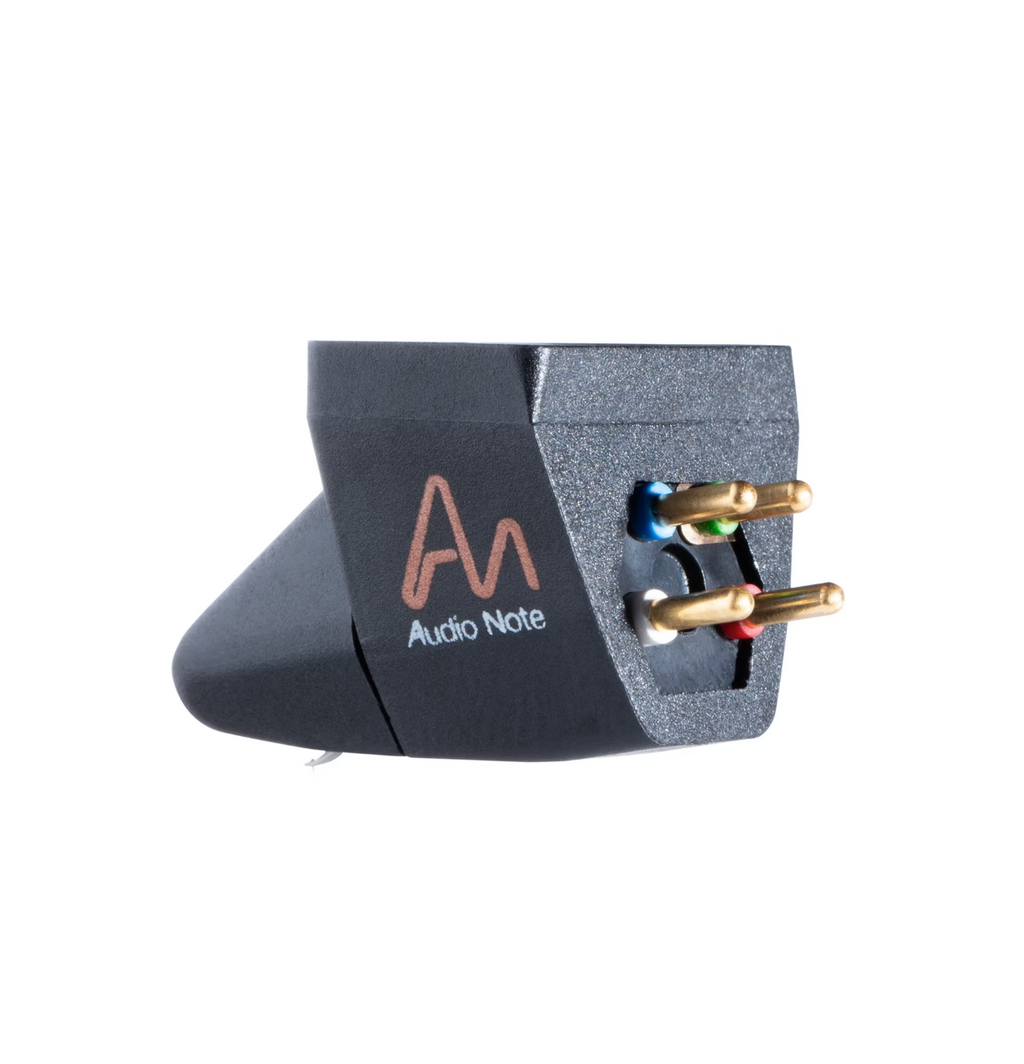

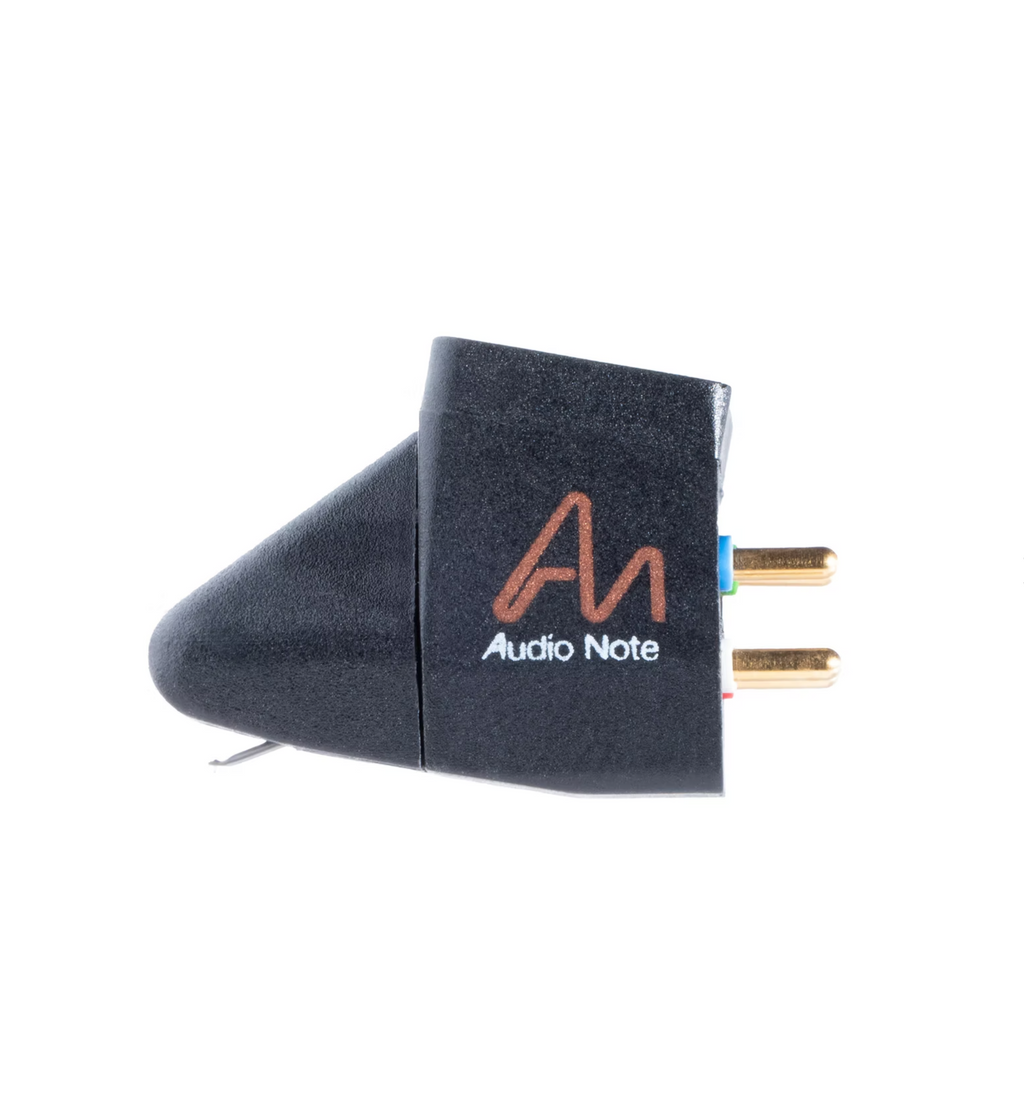

The IQ I features a rigid yet lightweight body made from Pocan, which is equipped with integral threaded inserts for easy installation in the tonearm headshell. This mounting system greatly improves the mechanical coupling between the cartridge body and the headshell compared to the traditional nut & bolt fixing.

The internal coils are made from extremely fine copper wire, and the cantilever is formed from a specific grade of aluminum tube. You may also notice that the suspension is stiffer than what is usually seen in Moving Magnet cartridges of this type.

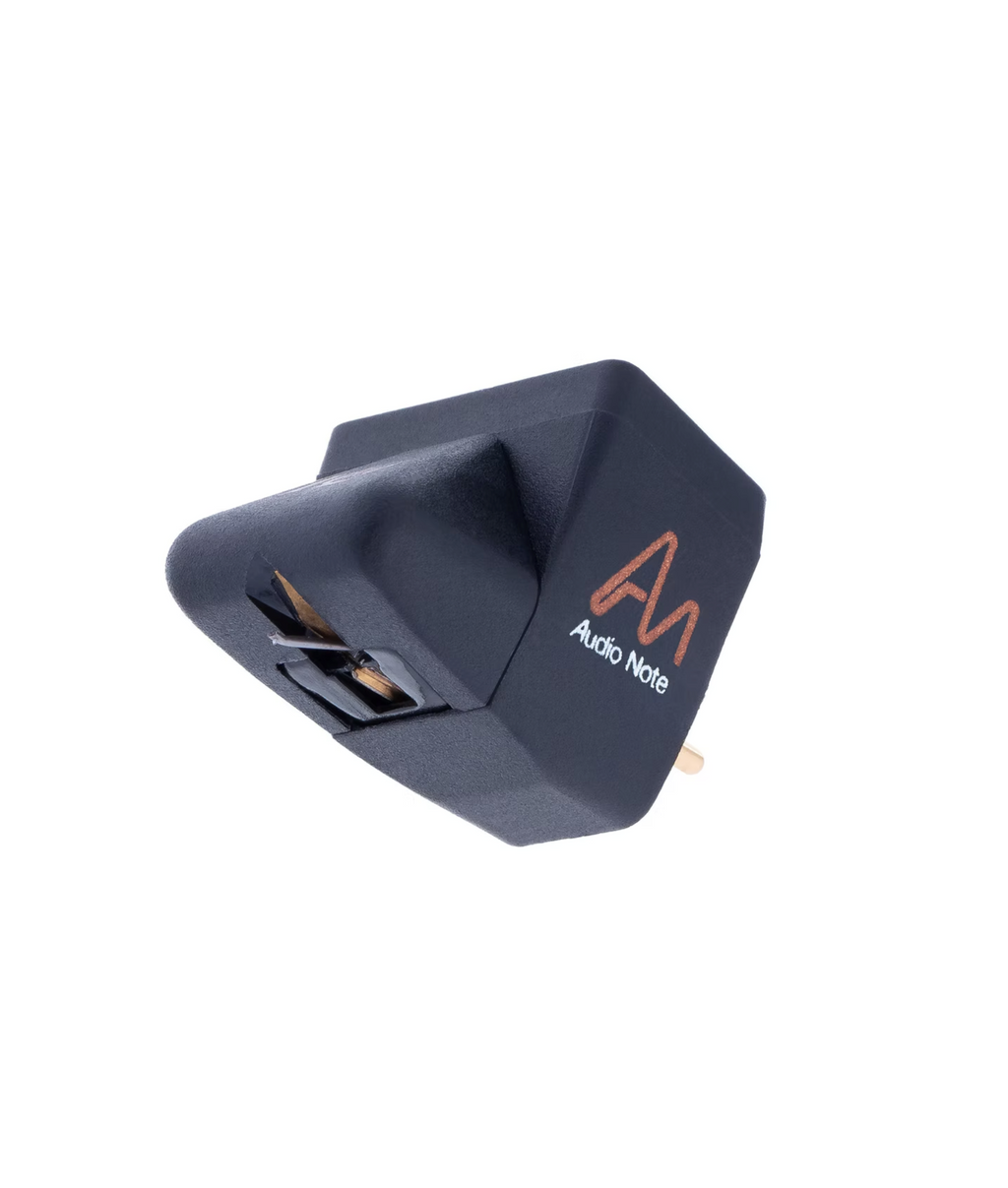

The stylus is a Gyger Type I, and the complete assembly is removable, making replacement or upgrade a straightforward and cost-effective process. In fact, all of the IQ stylus assemblies are interchangeable, meaning that you could start with an IQ-I and eventually replace the stylus assembly with the vastly superior version used in the IQ-III. It has been designed to be used with a Moving Magnet-compatible phono stage with an input impedance of 47K Ohms.

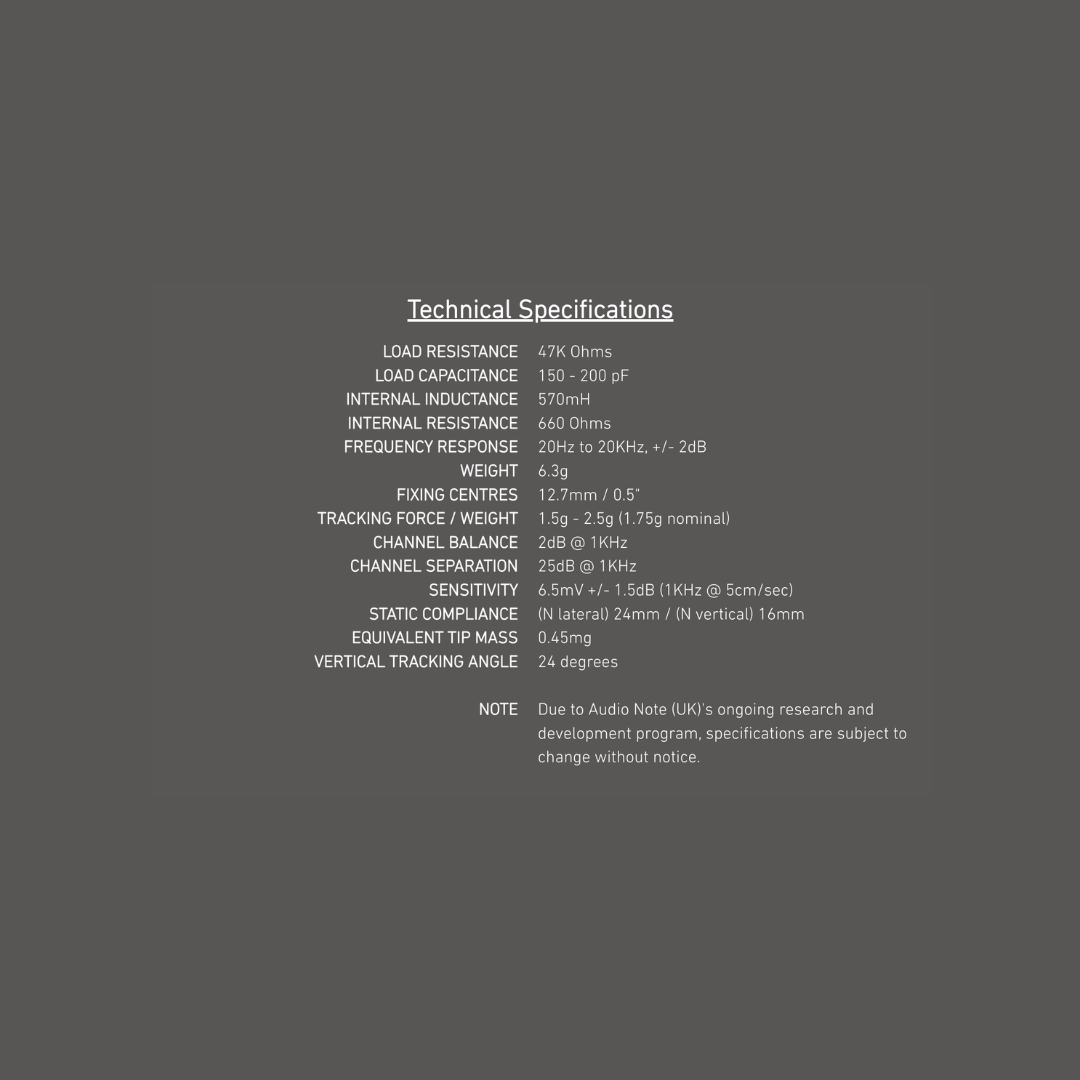

The total capacitance in parallel (including arm lead and amplifier capacitance) should not exceed 200pF. If other values of load resistance and capacitance are used, the frequency response of the cartridge may deviate from the specified values.

Engineered with audiophile-grade components — premium drivers, hand-matched crossovers, and a hardwood enclosure tuned for natural decay. Every cabinet is internally braced and damped to suppress resonance below the threshold of audibility.

• Custom 6.5" mid-bass driver with paper-pulp cone for transient accuracy.
• Soft-dome silk tweeter with neodymium motor for airy, fatigue-free highs.
• Point-to-point hand-wired crossover using silver-foil capacitors.
• Bi-wirable terminals plated in pure copper.

Place each speaker on its dedicated stand, toed-in toward the listening position. The hardwood enclosure resonates in concert with the drivers — a deliberate, musical interaction rather than a flaw to be eliminated.

Connect to a quality amplifier using bi-wired speaker cable for the most transparent presentation. Allow 50–100 hours of break-in for the drivers and crossover capacitors to settle into their final voicing.
