Raidho X2T
AED71,500.00
VAT Included
|
Free delivery in UAE

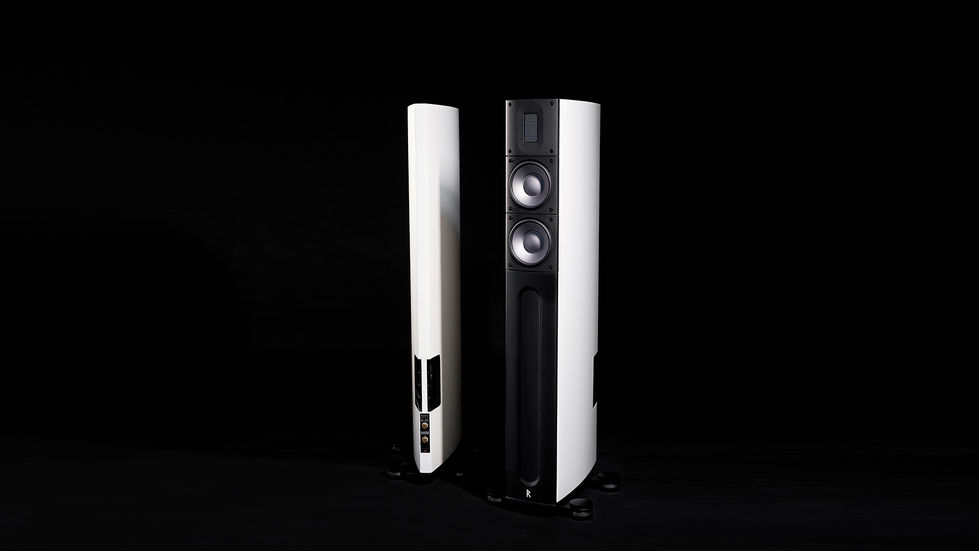

New Raidho X2t Compact Floor Standing Loudspeaker
The quest for making a much-improved X2t began, using the same improvements from the X1t and more additional ingredients from the ultra high-end sector.
The X2t does everything the compact X1t does, just on a higher level. Additionally, the X2t has dual woofers with which you get much more bass power and a larger scale to the music.
The two 5,25” bass driver units in the new X2t, now has the Tantalum coating. Tantalum belongs to a class of metals known as refractory metals, which are defined by their strong resistance to heat and wear. It has a melting point of 2,996 °C, the fourth highest of all metals. This makes the membrane much stiffer and harder without adding any weight and thereby raising the breakup modes to an incredible 15kHz.
The new crossover in the X2t has quality components that exceeds many other loudspeakers up to EUR 80.000. On the back you can see the point-to-point hardwiring that is all done by hand. Furthermore, the use of Nordost cable in the crossover is highly unusual and reveals the enormous attention to detail. Needless to say, the internal cable is also from Nordost with Norse technology, which is also used in the Nordost Valhalla models. Truly remarkable.
Further upgrades from the X2 to the X2t are:
- Better components in the crossover
- Nordost internal cabling
- Completely retuning of the loudspeaker
A Raidho special among floor standing loudspeakers is also the use of 2,5-way construction. This guarantees a very coherent sound from top to bottom as both drive unit puts out bass, but only the upper does midrange. Decoupling of the speakers is integrated into the feet. So, there is no need for spikes to achieve the best result, because this is done with metal balls, on which the speakers rest on.
The new X2t may not look all that different to the original X2. But in reality, the only thing that stays the same is the visual appearance. The sonic performance on the other hand, is on a whole other planet.
Color
Quantity
Xseries Driver
This drive unit is not only highly advanced and built in-house in Denmark, but is also a piece of art.
Raidho’s Ceramix technology starts with a thin, aluminum cone and then uses a liquid plasma process and incredibly high voltage to transform the outer skin of the metal to aluminum-oxide ceramic. It’s a time-consuming and costly process, but the finished cone is a unique, natural sandwich, with thin, stiff skins on either side of a ‘softer” aluminum core, creating a structure that is stiffer and with excellent self-damping. Breakups first enter at an incredible 12.5kHz.
The motor system consists of strong neodymium magnets focused around a very open system, allowing ventilation to the driver with the benefit of cooling the titanium voice coil and removing part of the design that usually causes distortions.
The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create a holographic soundstage.
Raidho’s Ceramix technology starts with a thin, aluminum cone and then uses a liquid plasma process and incredibly high voltage to transform the outer skin of the metal to aluminum-oxide ceramic. It’s a time-consuming and costly process, but the finished cone is a unique, natural sandwich, with thin, stiff skins on either side of a ‘softer” aluminum core, creating a structure that is stiffer and with excellent self-damping. Breakups first enter at an incredible 12.5kHz.
The motor system consists of strong neodymium magnets focused around a very open system, allowing ventilation to the driver with the benefit of cooling the titanium voice coil and removing part of the design that usually causes distortions.
The result is that the speakers disappear even more from the equation, drawing a soundscape without audible distortion and with a pitch-black background that made the instruments stand out and create a holographic soundstage.
The Legendary Raidho Ribbon Tweeter
Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a planar Magnetic Tweeter due to the tracks in the foil.
The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).
The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.
The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).
The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.
Technical Information
Topology:
2 way
Bass Loading:
Internal vented design. Port in the rear
Drivers:
1 x Raidho Ribbon Tweeter
2 x 5,25” Raidho Ceramix driver with Tantalum coating
Crossover Point:
130Hz and 3.4 kHz 2nd Order
Frequency Range:
40 Hz - 50 kHz +/-3 dB
Sensitivity:
87dB 2,83 V/m
Nominal Impedance:
4 ohm
Power Requirement:
50-150 Watts
Finish:
Piano Black, Birdseye maple or any colour to order
Dimensions WxHxD, mm:
300 x 1065 x 490 mm, including feet
Weight, kg:
23
1 x Raidho Ribbon Tweeter
2 x 5,25” Raidho Ceramix driver with Tantalum coating
