Raidho TD4.2

Price

AED412,610.00

VAT Included

|

Free delivery in UAE

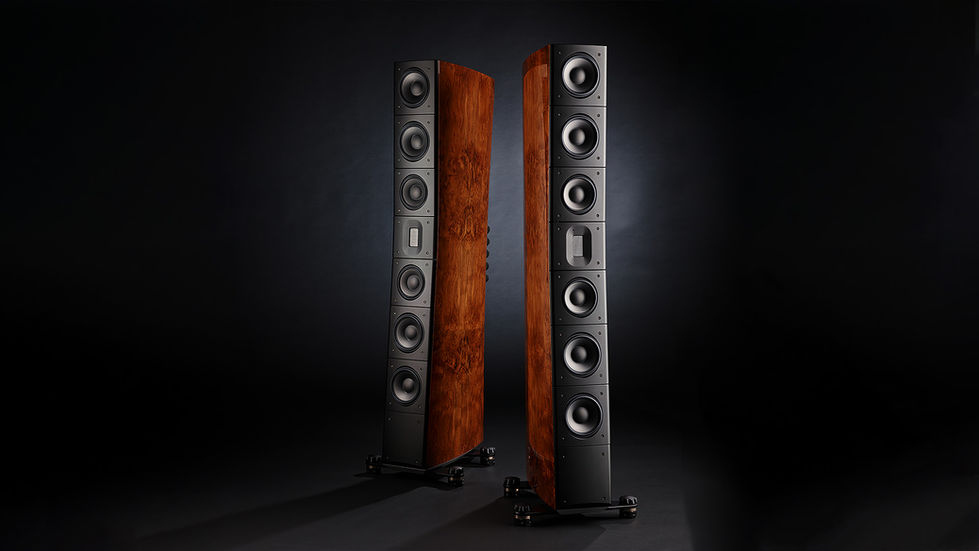

Raidho TD4.2 Floor Standing Loudspeaker‍



The TD4.2 is the first in the TD line with a true MTM configuration. This makes for an enormous holographic sound stage, but this configuration also makes the loudspeaker easier to integrate into the room acoustics as the dispersion is controlled.





The sound is authentic and live, delivering powerful music experiences.





This symmetrically build extends all the way to the bass. TD drive units makes the speaker ingulf you in a holographic landscape of sound.



With multiple bass driver it may produce the same volume and go as deep as much bigger woofers, just with much better impulse response resulting in a very dynamic and articulate sound. This also makes it possible to keep the front plate slim, thereby reducing diffraction. This adds to a wide and precise sound stage.



The sound is authentic and live, and TD4.2 will deliver musical experiences from the smallest, intimate performances and to the biggest bands, with impact, dynamics, and musical scale in the most convincing of ways.

Color

Quantity

Raidho Series TD ‍Drive Unit

This is truly aunique and revolutionary drive unit! 100% developed and built in-house by Raidho. The goals was simple: nocoloration and outstanding dynamic capabilities.


The motor comprisesof a very strong magnet (N52Neodymium) with an unseen even magnet field, coupledwith an underhungtitanium voice coil. This arrangementgives the drive unitthe most powerful underhung magnetsystem in the world. The benetfit from an underhung voiciecoil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.


To enhance the strength of the magnetic motor even further, we designed a new titanium voice coil using square shaped wire that eleminiates air in the voice coil windings. Leaving no possibility for air gaps to interfere with the magnetic field. The complete magnet system, as well as the basket itself is shaped like a turbine which eliminate any sound reflections, which would otherwisesmear the original sound. The solid coppering over the inner pole piece very effectively minimizes inductance and linearizes impedance. The suspension parts are as soft as possible to insure as little mechanic restraints to movement of the diaphragm.


Finally, a drive unit that can truly keep up with the Raidho ribbon tweeter and make it all sound as one.

The Legendary Raidho Ribbon Tweeter

Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a planar Magnetic Tweeter due to the tracks in the foil.


The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).


The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!


For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.

Technical Information

Topology 3 way
Bass Loading Bass reflex Port in rear, Impulse optimized
- Conform
Drivers

1 x Raidho TD Ribbon Tweeter

2 x 5” Raidho Tantalum Diamond midrange

4 x 6,5” Raidho Tantalum Diamond bass

Crossover Point 400Hz and 2.4 kHz stepped slope
Fequency Range 25Hz - 50 kHz +/- 3 dB
Sensitivity 88dB 2,83 V/m
Nominal Impedance 6 Ohm
Power Requirement 50 - 300 Watts
Finish Piano Black, Walnut burl veneer or any color to order
Dimensions WxHxD, mm 440 x 1585 x 600 including feet
Enclosure WxD, mm 200 x 600
Weight, kg 64
