Raidho TD3.2
AED225,580.00
VAT Included
|
Free delivery in UAE

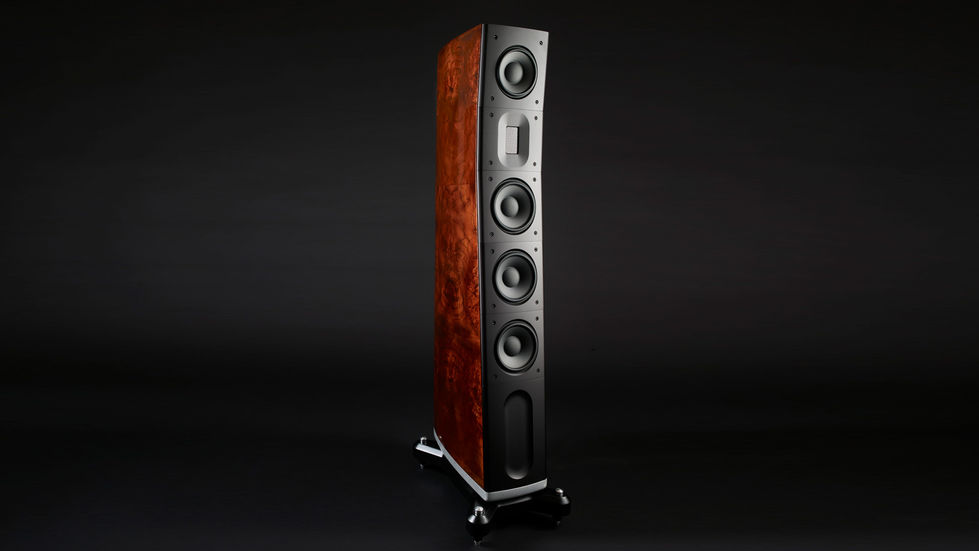

Raidho TD3.2 Floor Standing Loudspeaker
The beautiful looks of the TD3.2 hold a3-way speaker that can deliver real-life dynamics and authentic sound that is as live and true as the artist wanted it to be. This loudspeaker can portray real full-range sound while fitting perfectly in any interior.
This model has the power to surprise with both looks and sound.
The TD3.2 is capable of delivering a huge soundstage with authentic and organic sound that really captures the listener. A true 3-way design built upon our new drivers including the 5” midrange used in the TD3.8, and the updated TD-ribbon tweeter.
Decoupling of the speakers is integrated into the feet. So, there is no need for spikes to achieve the best result, because this is actually done with ceramic balls, on which the speakers rest on.
The TD3.2 has its own dedicated 5,25” midrange drive unit which sits in its own enclosure. The result is much more transparency and detail in the very critical midrange band.
Color
Quantity

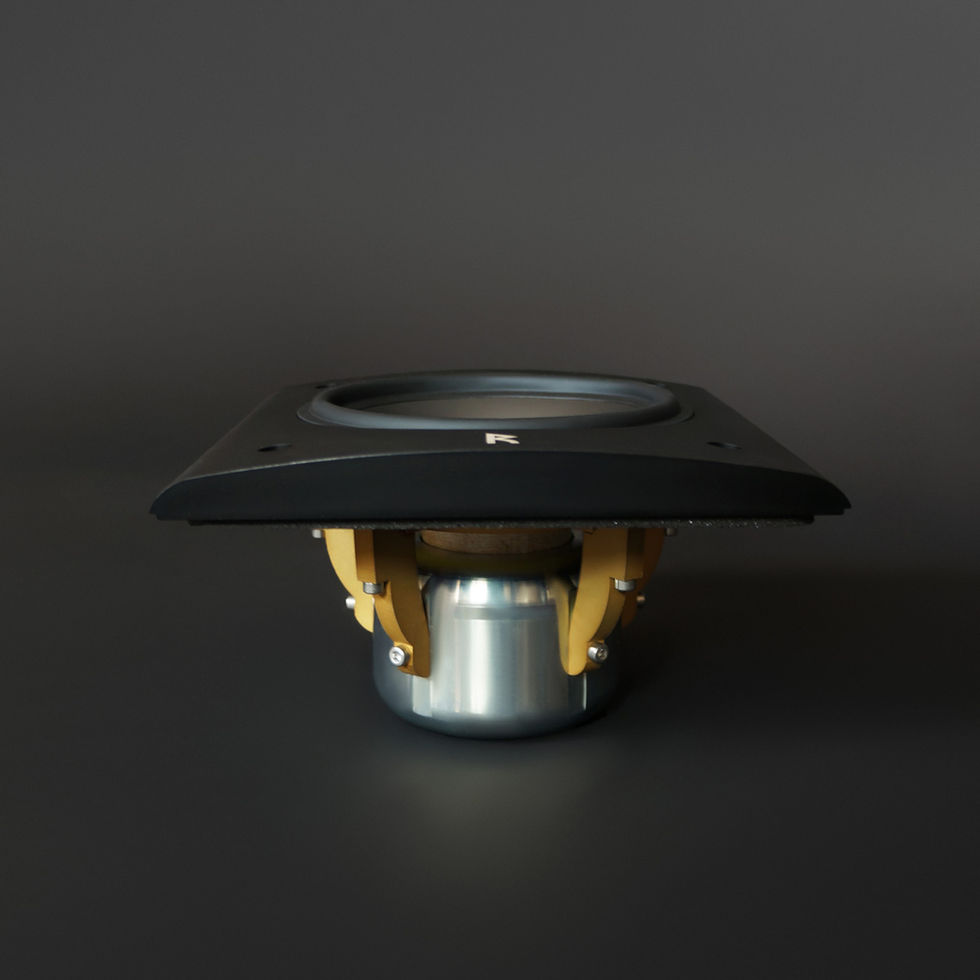

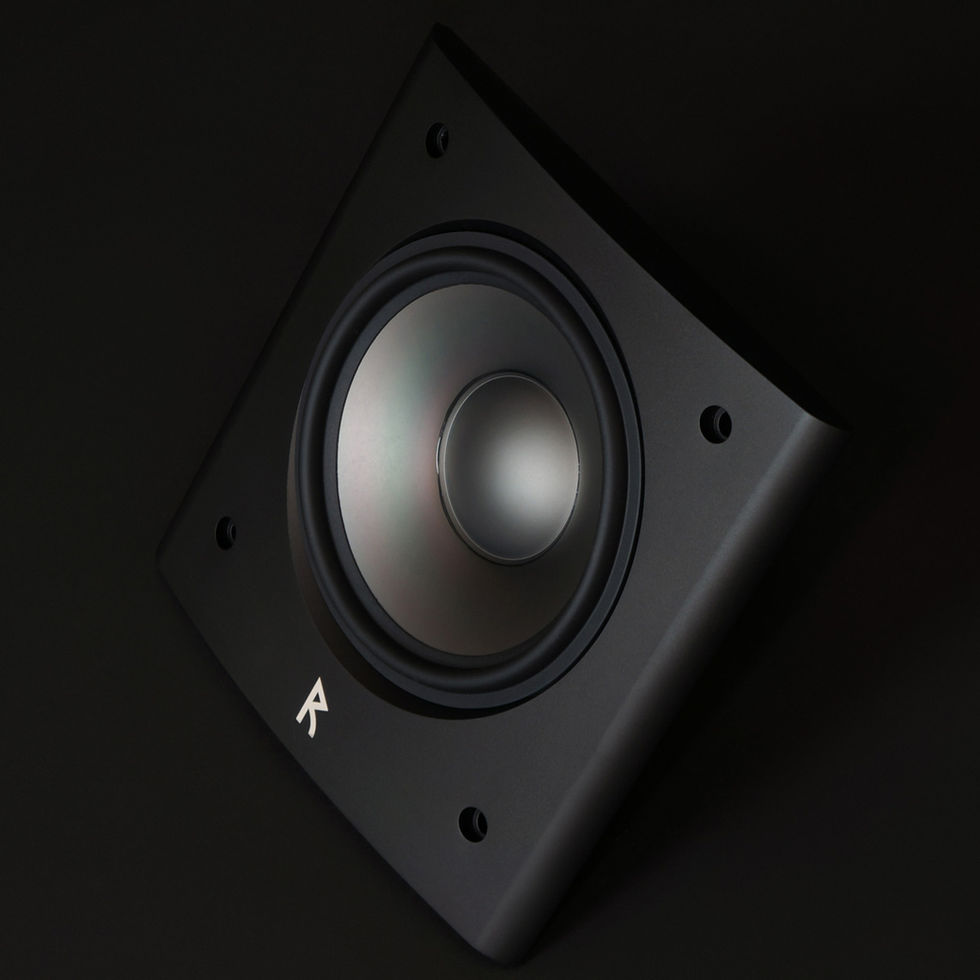

Raidho Series TD Drive Unit
This is truly aunique and revolutionary drive unit! 100% developed and built in-house by Raidho. The goals was simple: nocoloration and outstanding dynamic capabilities.
The motor comprisesof a very strong magnet (N52Neodymium) with an unseen even magnet field, coupledwith an underhungtitanium voice coil. This arrangementgives the drive unitthe most powerful underhung magnetsystem in the world. The benetfit from an underhung voiciecoil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.
To enhance the strength of the magnetic motor even further, we designed a new titanium voice coil using square shaped wire that eleminiates air in the voice coil windings. Leaving no possibility for air gaps to interfere with the magnetic field. The complete magnet system, as well as the basket itself is shaped like a turbine which eliminate any sound reflections, which would otherwisesmear the original sound. The solid coppering over the inner pole piece very effectively minimizes inductance and linearizes impedance. The suspension parts are as soft as possible to insure as little mechanic restraints to movement of the diaphragm.
Finally, a drive unit that can truly keep up with the Raidho ribbon tweeter and make it all sound as one.
The motor comprisesof a very strong magnet (N52Neodymium) with an unseen even magnet field, coupledwith an underhungtitanium voice coil. This arrangementgives the drive unitthe most powerful underhung magnetsystem in the world. The benetfit from an underhung voiciecoil over the traditional overhung, is that it is much more linear and better dynamic capabilities. The result is perfect transient response with no measurable distortion.
To enhance the strength of the magnetic motor even further, we designed a new titanium voice coil using square shaped wire that eleminiates air in the voice coil windings. Leaving no possibility for air gaps to interfere with the magnetic field. The complete magnet system, as well as the basket itself is shaped like a turbine which eliminate any sound reflections, which would otherwisesmear the original sound. The solid coppering over the inner pole piece very effectively minimizes inductance and linearizes impedance. The suspension parts are as soft as possible to insure as little mechanic restraints to movement of the diaphragm.
Finally, a drive unit that can truly keep up with the Raidho ribbon tweeter and make it all sound as one.

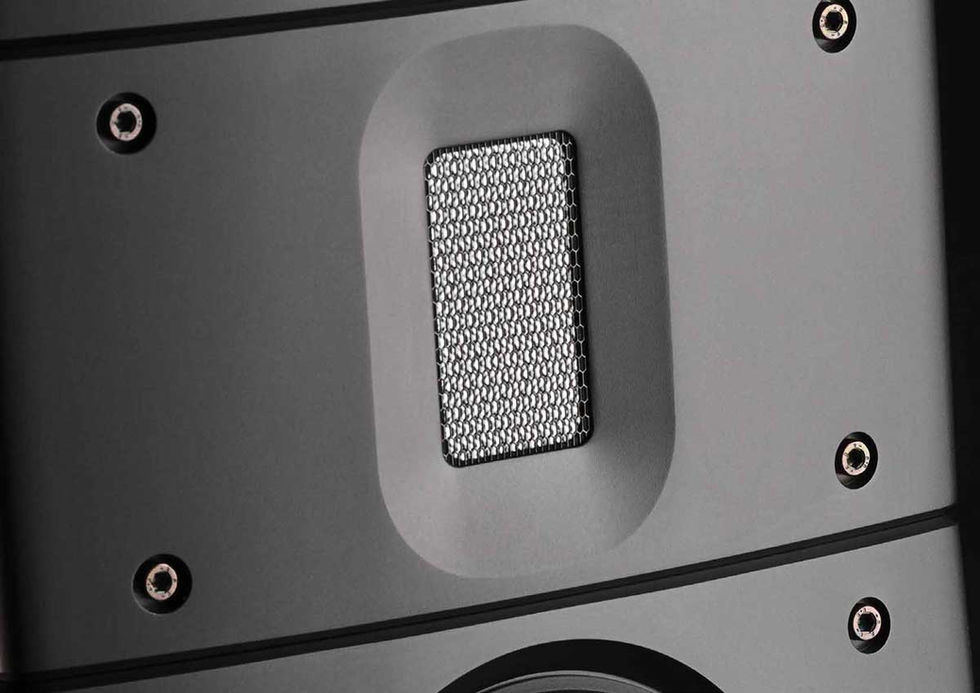

The Legendary Raidho Ribbon Tweeter
Our proprietary, trademark ribbon tweeter is a unique design. It is completely designed and build by hand in-house in Denmark. To be exact, it is a planar Magnetic Tweeter due to the tracks in the foil.
The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).
The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.
The foil is 11 micron thick, which means it is 50 times less mass in comparison to a conventional dome tweeter. This is because there is no voice coil and the extremely low weight of the foil (20 milligrams).
The result is virtually no resonances or distortion, and the breakup point is at an incredible 82 KHz! What you hear is amazingly clear and natural sound. All the detail in the world, but no fatigue, no distortion, and no coloration!
For the TD series, we looked at how we could improve the tweeter to match the new drivers. A redesign of the magnets, waveguide, and rear panel to optimize airflow, helped us to raise the sensitivity by 3 dB, and reduce the already low levels of distortion by 35 dB. This raised the level of performance further, making our world-class tweeter even better.
Technical Information
Topology
3 way
Bass Loading
Bass reflex Port in rear, Impulse optimized
Drivers
1 x Raidho TD Ribbon Tweeter
1 x 5” Raidho Tantalum Diamond midrange
3 x 6.5” Raidho Tantalum Diamond bass
Crossover Point
400Hz and 2.4 kHz stepped slope
Fequency Range
28Hz - 50 kHz +/- 3 dB
Sensitivity
90dB 2,83 V/m
Nominal Impedance
4 Ohm
Power Requirement
50 - 300 Watts
Finish
Piano Black, Walnut burl veneer or any color to order
Dimensions WxHxD, mm
315 x 1235 x 505 including feet
Enclosure WxD, mm
200 x 505
Weight, kg
55
1 x Raidho TD Ribbon Tweeter
1 x 5” Raidho Tantalum Diamond midrange
3 x 6.5” Raidho Tantalum Diamond bass
