AGD ANDANTE PRE-DAC Streamer Phono
AED52,500.00
VAT Included
|
Free delivery in UAE

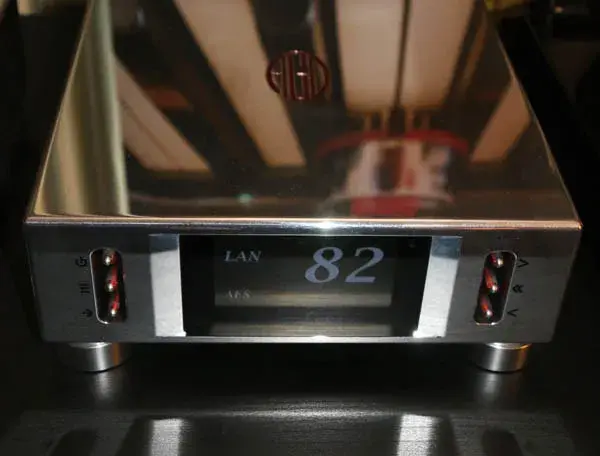

The AGD Andante is the perfect companion for the Vivace or The Audion GaNTube Monoblocks. Crafted with the same care and dedication as all AGD products, the Andante is a superior musical preamplifier that combines all the best of the analog and digital technology available today.

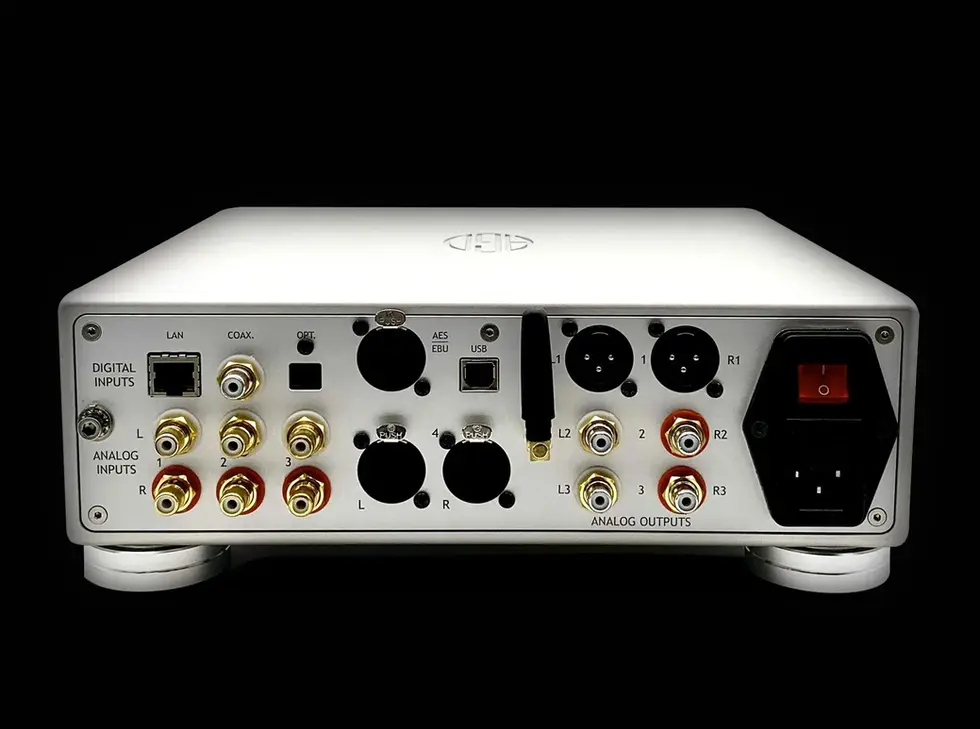

The AGD Andante is a fully balanced analog design with four analog inputs and three analog outputs. The phono stage input is configurable for MC or MM cartridges. All analog circuits are fully shielded and separated from Digital Boards. A set of dedicated ultra-low noise LDO supply stages and high-dynamic low noise professional-grade instrumentation amplifiers complete the output buffer stage.
The volume control is completely passive, with high-precision resistors in a 256-step ladder attenuator configuration. The Andante has full HD Streaming Capability (DLNA, UPNP, AirPlay, ROON) via Ethernet port, and has full AptX-Bluetooth compliance functionality.
With a state of the art USB module, based on the latest XMOS chipset that can decode any audio format available today (from MP3 to DSD512), and its professional-grade 32bit-384kHz R2R DAC with DSP functions, the AGD “ANDANTE” is a complete audiophile Analog and Digital Reference Preamplifier that delivers a unique set of features capable to meet the utmost musical standards of any demanding audiophile.
Finish
Quantity
Specifications
Phono Input
- Moving Magnet and Moving Coil selectable via Menu
- MM Input Impedance: 47kΩ, S/N ≤ -80db
- MC Input Impedance: 420Ω, S/N ≤-70db
- RIAA Accuracy: <0.5dB
- Frequency Response: 20Hz-20kHz ±0.1db
- THD%: ≤0.03%
Line Analog Inputs
- 2 Single ended (RCA2, RCA3), 1 XLR inputs (XLR)
- Frequency Response: 1Hz-100kHz ±0.2db
- (Passive front-end direct coupling)
Analog Outputs
- 1 XLR Output
- 2 RCA Outputs
- Output Impedance: <50ohm
- Frequency Response: 1Hz-100kHz ±0.2db
- THD+N (Balanced): ≤0.005%
- THD+N (Single Ended): ≤0.009%
- S/R ≥110db
- Direct output coupling.
Digital Inputs
- 1 USB
- 1 AES/EBU (XLR)
- 1 Coax
- 1 TOSLINK (max sample rate 192 kHz)
- 1 LAN (Ethernet Port for streaming audio only )
Audio Formats
MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, ALAC, DSD
DNLA
1.5
USB
- XMOS XU208 Process based Chipset
- Frequency: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
- Resolution: 16, 24 & 32-bit.
- DSD64 (2.8224MHz and 3.0720MHz), DSD128 (5.6448MHz and 6.1440MHz) and DSD256 (11.2896MHz and 12.2880MHz), DSD512 (22.5792MHz and 24.576MHz).
Streaming Functionality
DNLA, UPnP, ROON, AirPlay (via LAN port)
Bluetooth
aptX
Net Dimension
11”x 11”x 3.5” (280 x 280 x 90mm)
Remote
Infrared
Trigger Output
12V, 0.1A DC (Custom Request)
Flight Case Dimension
22”x 18”x 10” (560 x 457 x 254mm)
Net Weight
22lb/10kg
Gross Weight
29lb/13kg
Input voltage
Universal (110-240V, 50-60Hz)
